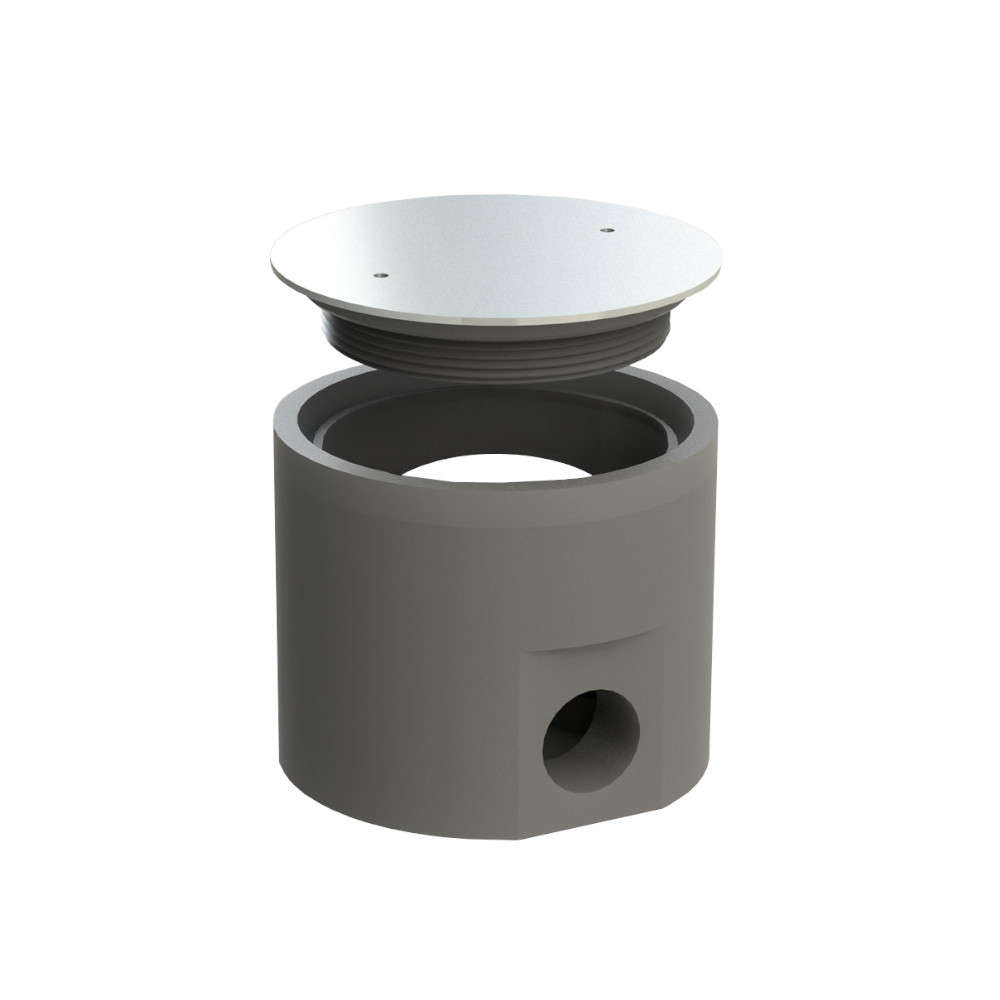

Floor socket round with screw cap (7701ES)

Floor socket round with screw cap to be set at floor/wall level, made of gray massive PVC, massive construction. The top is made of massive aluminum and with stainless steel look anodized. Surface made of 1.5mm stainless steel/brass, grinded. In closed state waterproof, protection class IP 67.

Assembly Instructions: Ground   Assembly Instructions: Terrace

ATTENTION!

• If the floor socket is to be incorporated into a hollow or wooden floor, e.g. a terrace, an aluminum adjusting ring is essential  for fastening.
• Dimension: Ø120 x 80mm

Pleace order the adjustment ring separately here >> Art.-Nr. 7733

TIP!

• For the socket there is an adapter ring. The ring is screwed between the lid and socket, thus enabling operation in rainy weather.
• The ring is not necessary for normal operation.
• Dimension: Ø80 x 70mm

Pleace order the adapter ring separately here >> Art.-Nr. 7735

Technical specifications:

• Material: gray massive PVC
• Dimensions: Ø 90 x 80mm
• Weight: 500 g
• Endurance: walkable
• Supply: laterally 2 conductor ports per M25

  Subject to technical changes!
